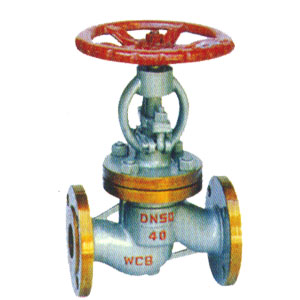

J41N液化氣截止閥
主要類別：截止閥
發(fā)布日期：2019-06-29
瀏覽次數(shù)：
◇主要尺寸表
|
公稱通徑DN(mm) |
主要外形尺寸和連接尺寸 (mm) |
||||||||
|
L |
D |
D1 |
D2 |
b |
f |
z-d |
H |
D0 |
|
|
J41H/Y-16C J41N-16P J41N-16R J41N-16R |
|||||||||
|
10 |
130 |
90 |
60 |
40 |
14 |
2 |
4-14 |
198 |
120 |
|
15 |
130 |
95 |
65 |
45 |
14 |
2 |
4-14 |
200 |
120 |
|
20 |
150 |
105 |
75 |
55 |
14 |
2 |
4-14 |
243 |
140 |
|
25 |
160 |
115 |
85 |
65 |
14 |
2 |
4-14 |
253 |
160 |
|
32 |
180 |
135 |
100 |
78 |
15 |
2 |
4-18 |
280 |
180 |
|
40 |
200 |
145 |
110 |
85 |
16 |
3 |
4-18 |
312 |
200 |
|
50 |
230 |
160 |
125 |
100 |
16 |
3 |
4-18 |
321 |
240 |
|
65 |
290 |
180 |
145 |
120 |
18 |
3 |
4-18 |
325 |
280 |
|
80 |
310 |
195 |
160 |
135 |
20 |
3 |
8-18 |
355 |
280 |
|
100 |
350 |
215 |
180 |
155 |
20 |
3 |
8-18 |
415 |
320 |
|
125 |
400 |
245 |
210 |
185 |
22 |
3 |
8-18 |
460 |
360 |
|
150 |
480 |
280 |
240 |
210 |
24 |
3 |
8-23 |
510 |
400 |
|
200 |
600 |
335 |
295 |
265 |
26 |
3 |
12-23 |
710 |
400 |
|
250 |
650 |
405 |
355 |
320 |
30 |
3 |
12-23 |
786 |
450 |
|
300 |
750 |
460 |
410 |
375 |
30 |
3 |
12-23 |
925 |
500 |
◇主要尺寸表
|
公稱通徑 |
J41H/Y-25 J41N-25P J41N-25R J41Y-25I J941H/Y-25 J941W-25P J941W-25R |
||||||||||
|
主要外形尺寸和連接尺寸 |
電動裝置 |
||||||||||
|
L |
D |
D1 |
D2 |
b |
f |
z-d |
H手 |
H電 |
D0 |
||
|
10 |
130 |
90 |
60 |
40 |
16 |
2 |
4-14 |
198 |
- |
120 |
- |
|
15 |
130 |
95 |
65 |
45 |
16 |
2 |
4-14 |
233 |
- |
120 |
- |
|
20 |
150 |
105 |
75 |
55 |
16 |
2 |
4-14 |
275 |
- |
140 |
- |
|
25 |
160 |
115 |
85 |
65 |
16 |
2 |
4-14 |
285 |
- |
160 |
- |
|
32 |
180 |
135 |
100 |
78 |
18 |
2 |
4-18 |
302 |
- |
180 |
- |
|
40 |
200 |
145 |
110 |
85 |
18 |
3 |
4-18 |
355 |
- |
200 |
- |
|
50 |
230 |
160 |
125 |
100 |
20 |
3 |
4-18 |
362 |
645 |
240 |
DZW10I |
|
65 |
290 |
180 |
145 |
120 |
22 |
3 |
8-18 |
425 |
690 |
280 |
DZW10I |
|
80 |
310 |
195 |
160 |
135 |
22 |
3 |
8-18 |
469 |
715 |
280 |
DZW15I |
|
100 |
350 |
230 |
190 |
160 |
24 |
3 |
8-23 |
470 |
770 |
320 |
DZW20 |
|
125 |
400 |
270 |
220 |
188 |
28 |
3 |
8-25 |
558 |
780 |
360 |
DZW30 |
|
150 |
480 |
300 |
250 |
218 |
30 |
3 |
8-25 |
611 |
875 |
400 |
DZW45 |
|
200 |
600 |
360 |
310 |
278 |
34 |
3 |
12-25 |
721 |
967 |
400 |
DZW60 |
|
250 |
650 |
425 |
370 |
332 |
36 |
3 |
12-30 |
786 |
- |
450 |
- |
|
300 |
750 |
485 |
430 |
390 |
40 |
4 |
12-30 |
925 |
- |
500 |
- |
|
公稱通徑 |
J41H/Y-25 J41W-40P J41W-40R J41Y-40I J941H/Y-40 J941W-40P J941W-40R J941Y-40I |
||||||||||||
|
主要外形尺寸和連接尺寸 |
電動裝 |
||||||||||||
|
L |
D |
D1 |
D2 |
D6 |
b |
f |
f2 |
z-d |
H手 |
H電 |
D0 |
||
|
10 |
130 |
90 |
60 |
40 |
35 |
16 |
2 |
4 |
4-14 |
198 |
- |
120 |
- |
|
15 |
130 |
95 |
65 |
45 |
40 |
16 |
2 |
4 |
4-14 |
233 |
- |
120 |
- |
|
20 |
150 |
105 |
75 |
55 |
51 |
16 |
2 |
4 |
4-14 |
275 |
- |
140 |
- |
|
25 |
160 |
115 |
85 |
65 |
58 |
16 |
2 |
4 |
4-14 |
285 |
- |
160 |
- |
|
32 |
180 |
135 |
100 |
78 |
66 |
18 |
2 |
4 |
4-18 |
302 |
- |
180 |
- |
|
40 |
200 |
145 |
110 |
85 |
76 |
18 |
3 |
4 |
4-18 |
355 |
- |
200 |
- |
|
50 |
230 |
160 |
125 |
100 |
88 |
20 |
3 |
4 |
4-18 |
373 |
645 |
240 |
DZW10I |
|
65 |
290 |
180 |
145 |
120 |
110 |
22 |
3 |
4 |
8-18 |
408 |
690 |
280 |
DZW10I |
|
80 |
310 |
195 |
160 |
135 |
121 |
22 |
3 |
4 |
8-18 |
436 |
715 |
320 |
DZW20I |
|
100 |
350 |
230 |
190 |
160 |
150 |
24 |
3 |
4.5 |
8-23 |
480 |
770 |
360 |
DZW30I |
|
125 |
400 |
270 |
220 |
188 |
176 |
28 |
3 |
4.5 |
8-25 |
558 |
782 |
400 |
DZW45 |
|
150 |
480 |
300 |
250 |
218 |
204 |
30 |
3 |
4.5 |
8-25 |
611 |
875 |
400 |
DZW60 |
|
200 |
600 |
375 |
320 |
282 |
260 |
38 |
3 |
4.5 |
12-30 |
720 |
1160 |
400 |
DZW90I |
